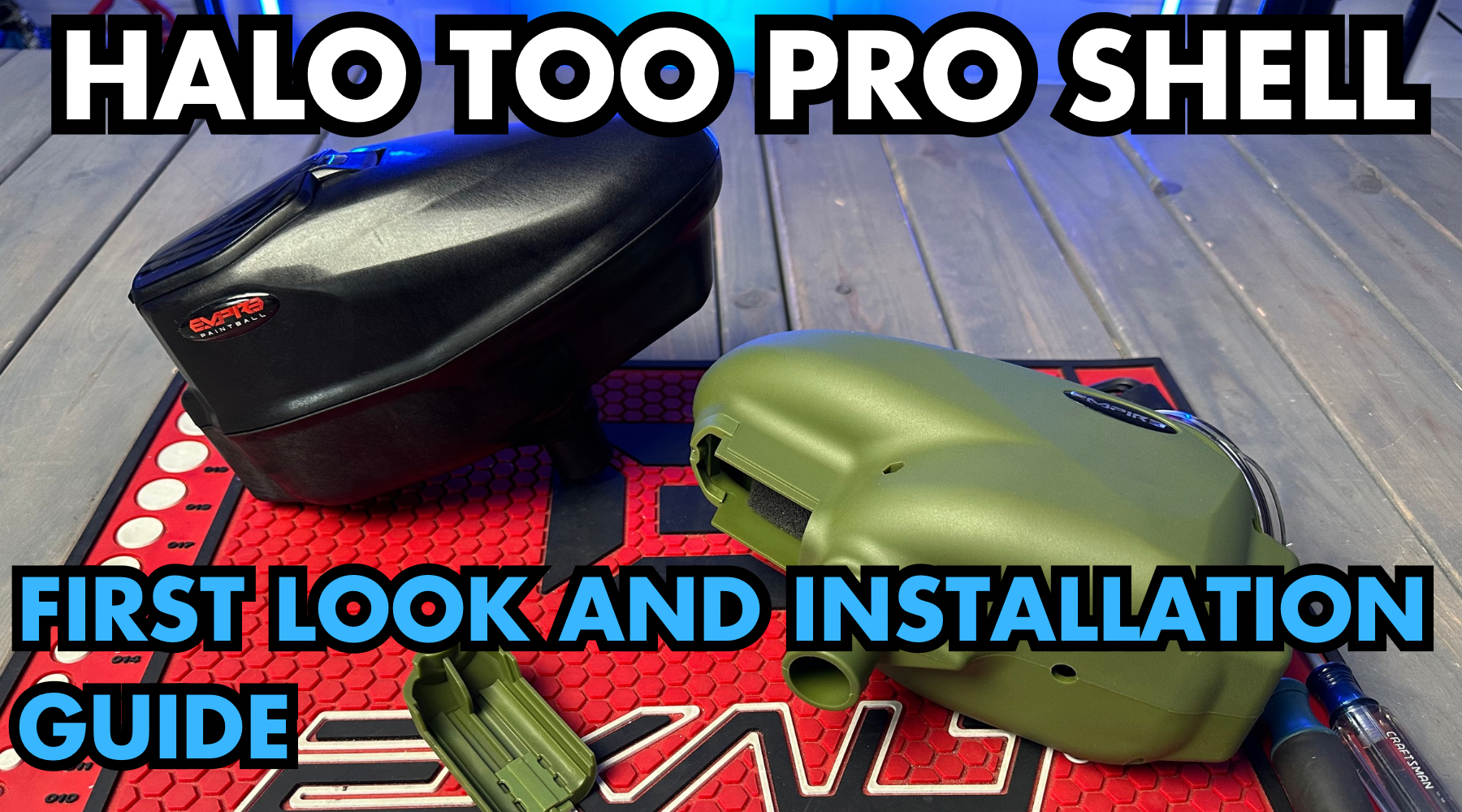

Empire Halo Pro Shell Kit Upgrade for the Halo Too Loader
The Empire Halo Too Loader has been around for years and remains one of the best-value paintball hoppers for players who want fast and dependable feeding. The downside is that the original shell design can be time-consuming to disassemble and clean compared with newer paintball loaders.
The Empire Halo Pro Shell Kit gives Halo Too owners a way to modernize their loader by transferring the existing internals into a redesigned shell with easier access, tool-less disassembly, and updated lid options.
Step 1: Disassemble Your Halo Too Loader
The first step is removing the internals from your original Halo Too. The Halo Pro Shell Kit is also compatible with certain older Halo B loaders using a four-AA battery harness.
- Remove the E-clip or C-clip: This small clip holds the rip drive wheel in place at the bottom of the loader. Use a small flathead screwdriver and carefully work it into one of the openings in the clip. Slowly twist the screwdriver until the clip releases.
- Remove the shell screws: Use a Phillips-head screwdriver to remove the screws holding the Halo Too shell together. Remember that there is also a screw located underneath the battery door.
- Separate the shell: Once the screws are removed, open the lid and carefully separate the two halves of the loader shell.
Step 2: Transfer the Internals to the Halo Pro Shell Kit
The Halo Pro Shell Kit includes a retainer piece and screw that secure the electronics inside the new shell. Keep these parts nearby during installation.
The new shell separates by lifting off the upper section, giving you access to the internal mounting points.
- Remove the electronics and raceway: Take the electronics and blue raceway or carousel assembly out of the original loader. Disconnect the board from the motor before transferring the parts.
- Install the electronics: Position the electronics, control panel, and retainer inside the lower shell. From top to bottom, the order should be the panel, retainer, and electronics. Reconnect the board to the motor, press the components into place, and secure the retainer with the supplied screw.
- Install the raceway: Place the raceway or carousel into the molded slots in the lower shell. Position the battery harness toward the front of the loader in its designated location, then install the center tray over the electronics and battery area.
- Install the upper shell: Snap the top section into place. Inside the lid area, a small red slider locks the shell-release button to help prevent accidental opening during play.
- Reinstall the rip drive wheel: Place the rip drive wheel back onto the motor post and secure it with the original retaining clip.
Tool-Less Access and Updated Lid System
Once the conversion is complete, one of the biggest benefits is much easier access to the loader internals. The Halo Pro Shell allows the loader to be opened without removing a series of screws, making routine cleaning and maintenance significantly easier.
The upgraded shell also uses a rain lid and speed feed system similar to the JT Triad Loader, giving the Halo platform a more modern lid design.
Halo Too Feeding Performance
The Halo Too platform has always been known for extremely fast feeding. During our testing, we were able to achieve a consistent 20 balls per second using a Planet Eclipse CS3 without feeding issues.
The Halo Pro Shell Kit does not replace the proven Halo drive system. Instead, it updates the exterior shell and maintenance experience while allowing players to continue using the fast-feeding internals they already own.
Is the Empire Halo Pro Shell Kit Worth It?
The Empire Halo Pro Shell Kit is a worthwhile upgrade for players who already own a compatible Halo Too or Halo B and want easier cleaning, tool-less access, and a more modern shell design without replacing the entire loader.
The installation does require several steps, and extra care should be taken when removing and reinstalling the retaining clip on the rip drive. For newer players, that part of the process may be the most challenging portion of the conversion.
Once installed, however, the result is a fast-feeding Halo loader with a much more convenient shell design. If you already like the performance of your Halo Too but want easier maintenance and updated features, the Empire Halo Pro Shell Kit is a practical way to modernize your existing loader.
