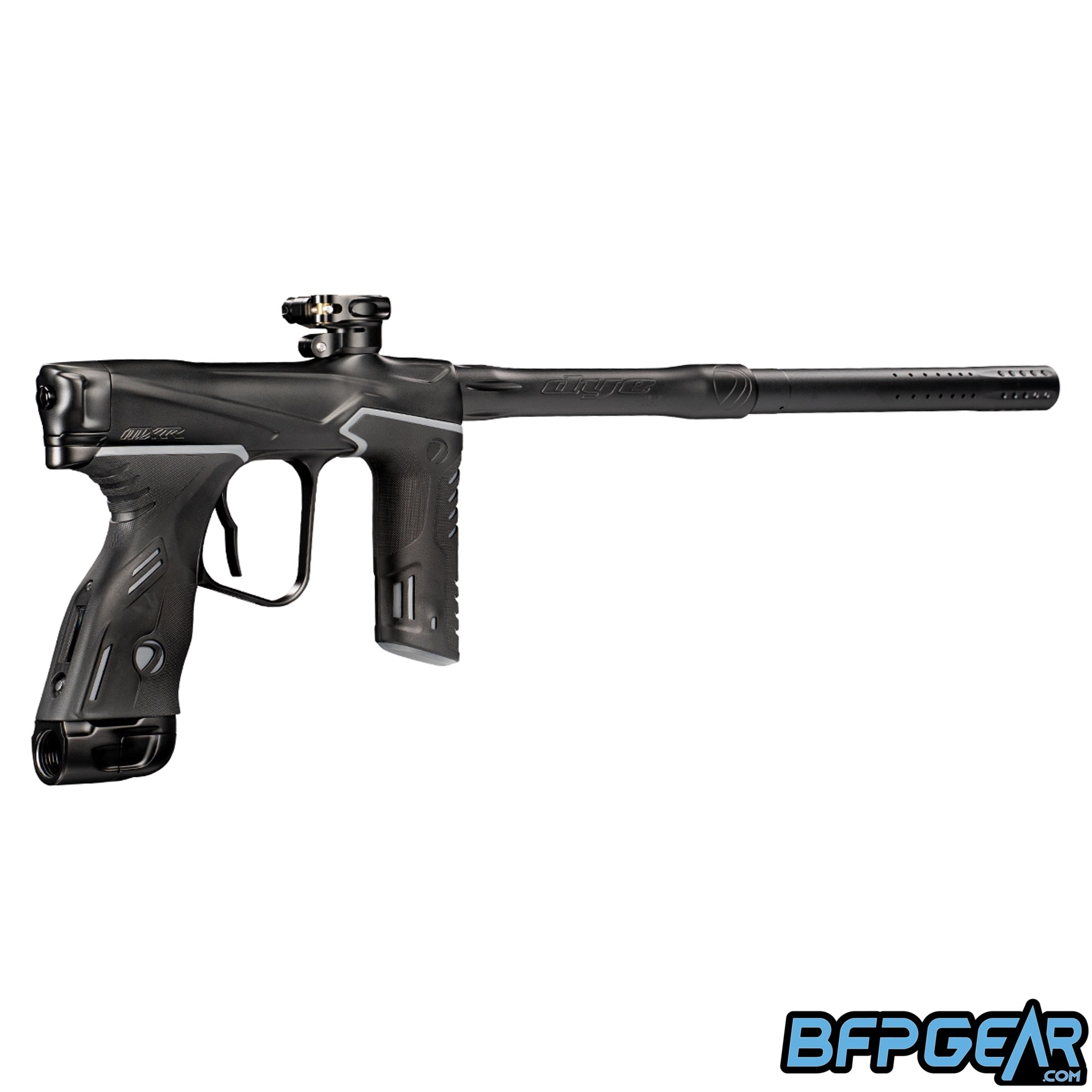

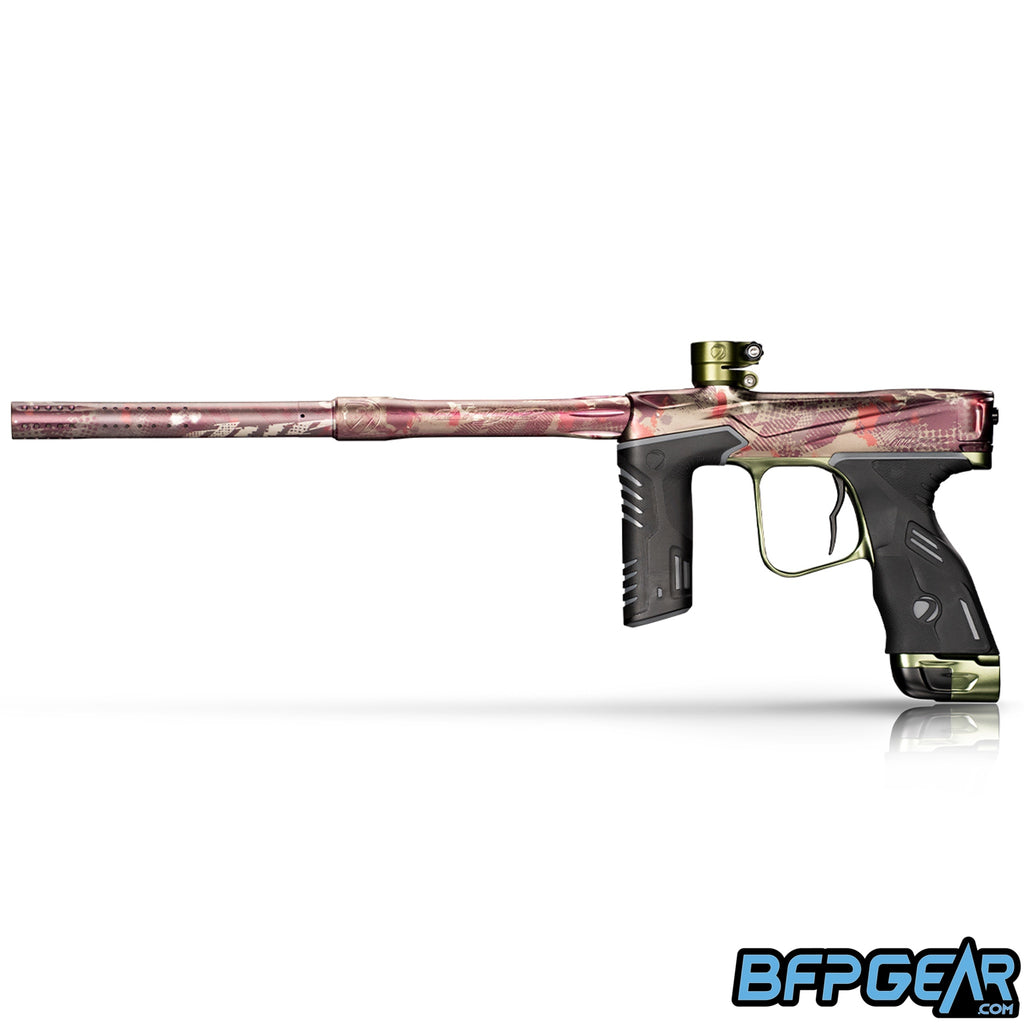

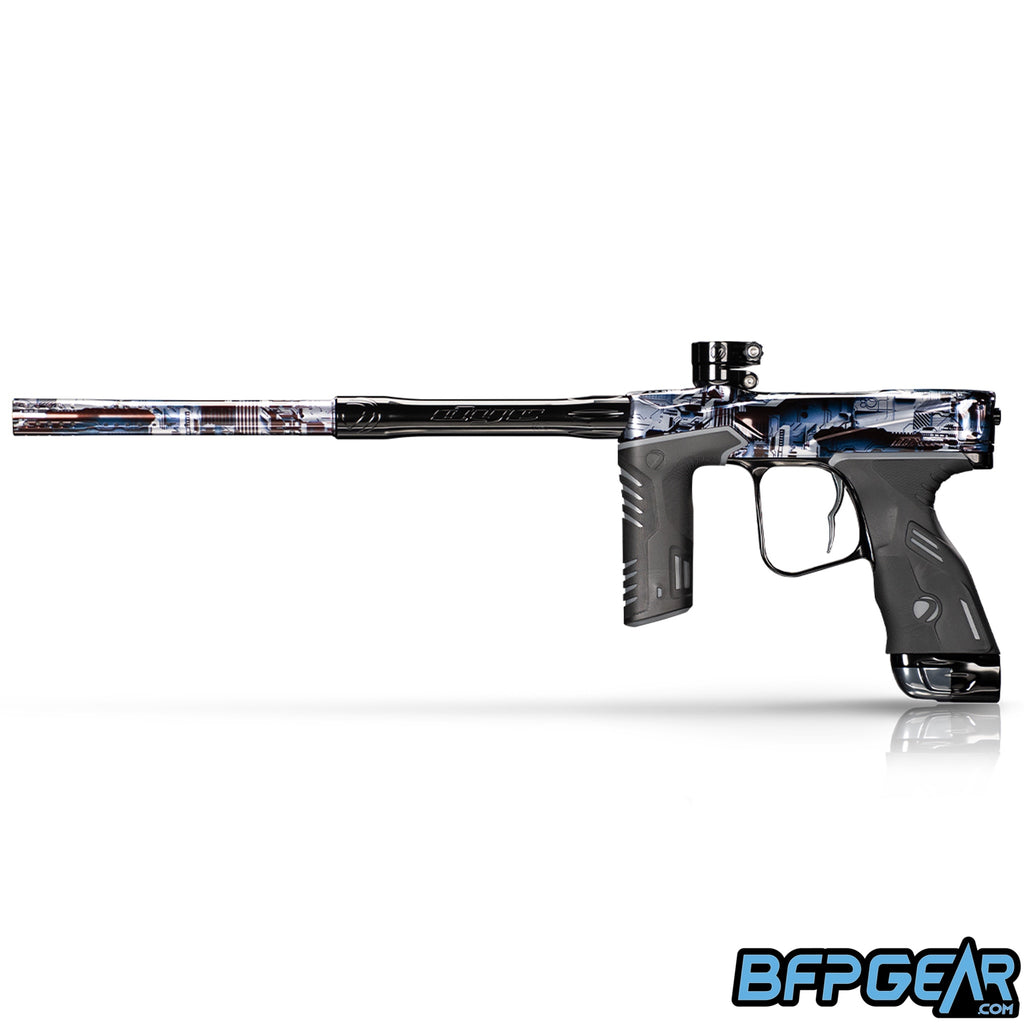

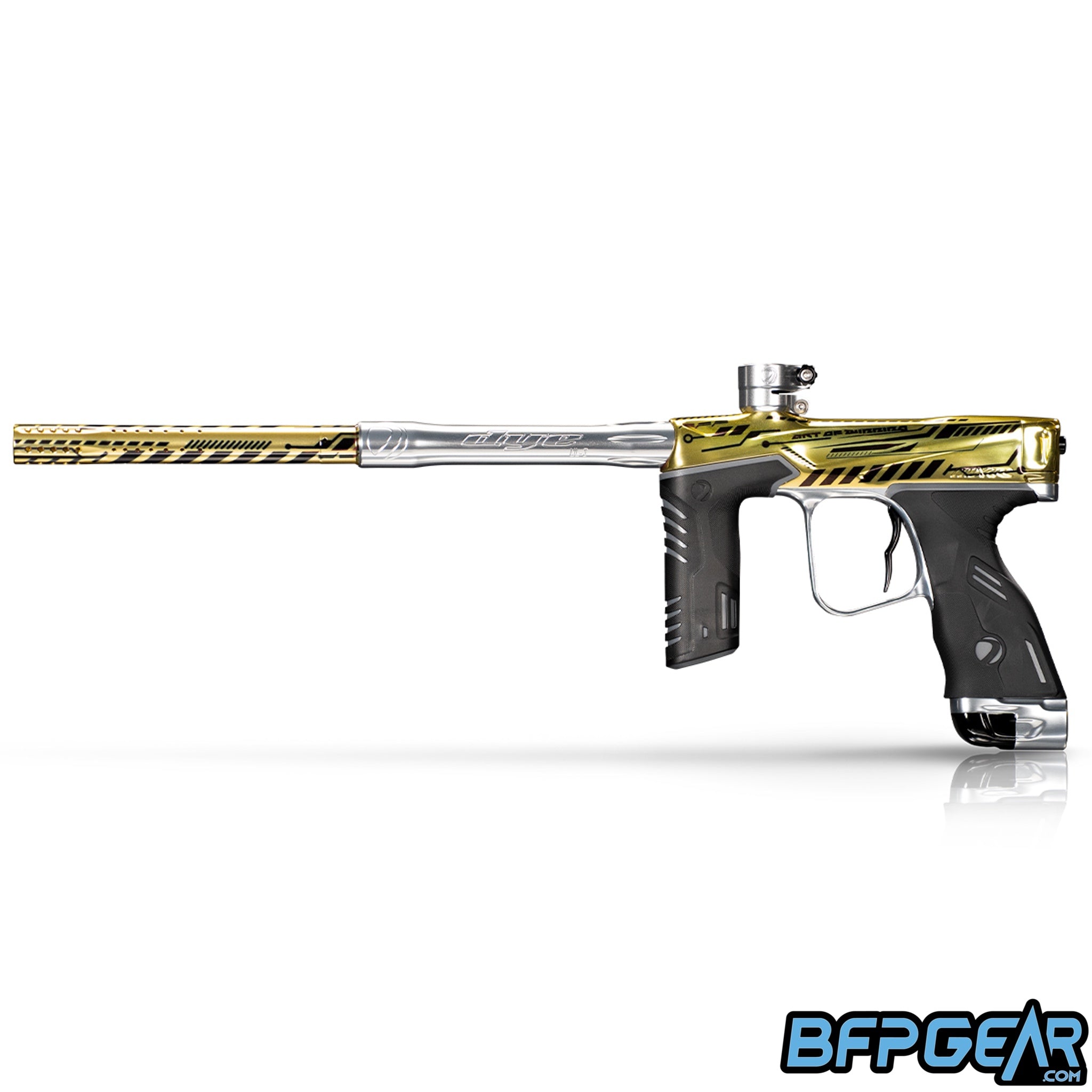

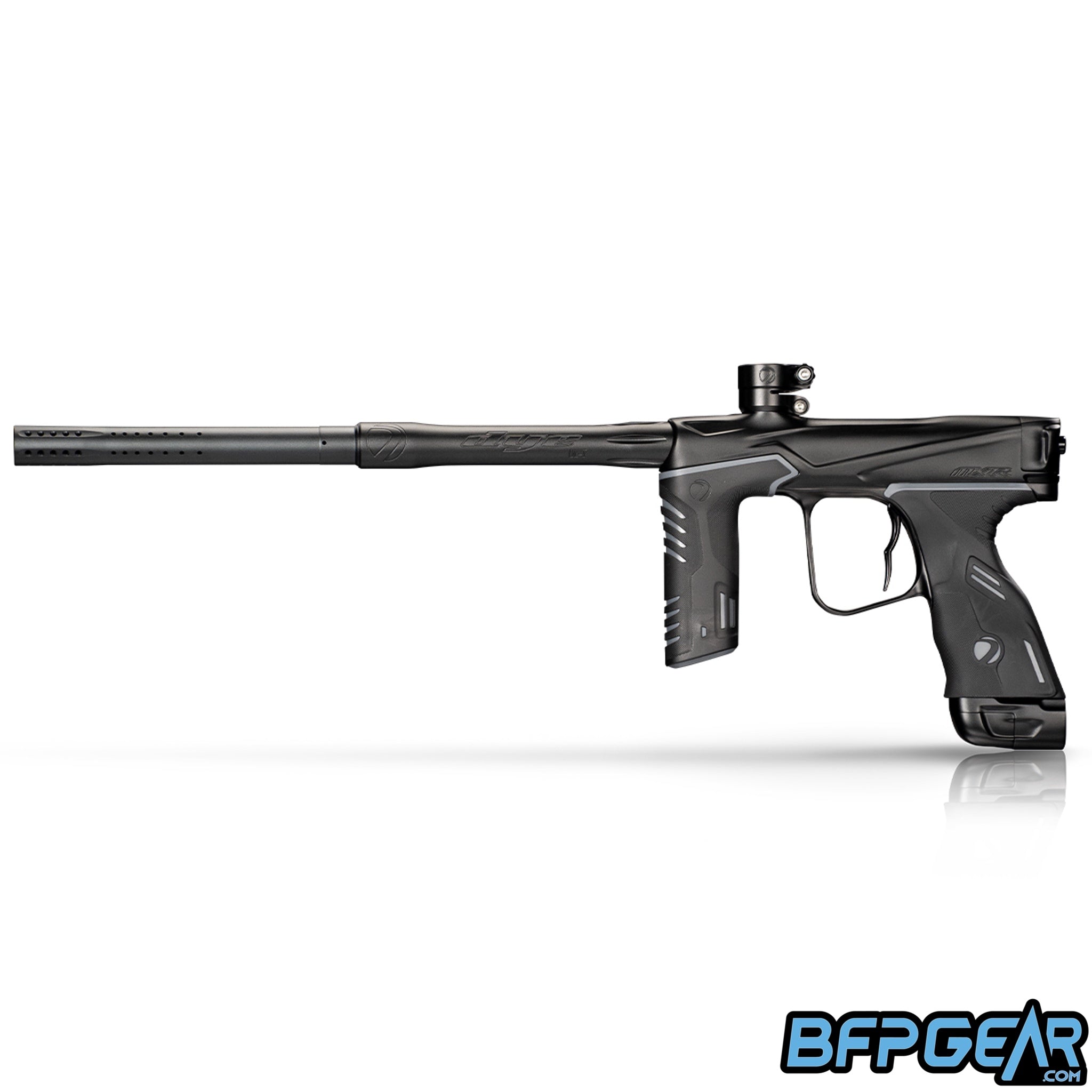

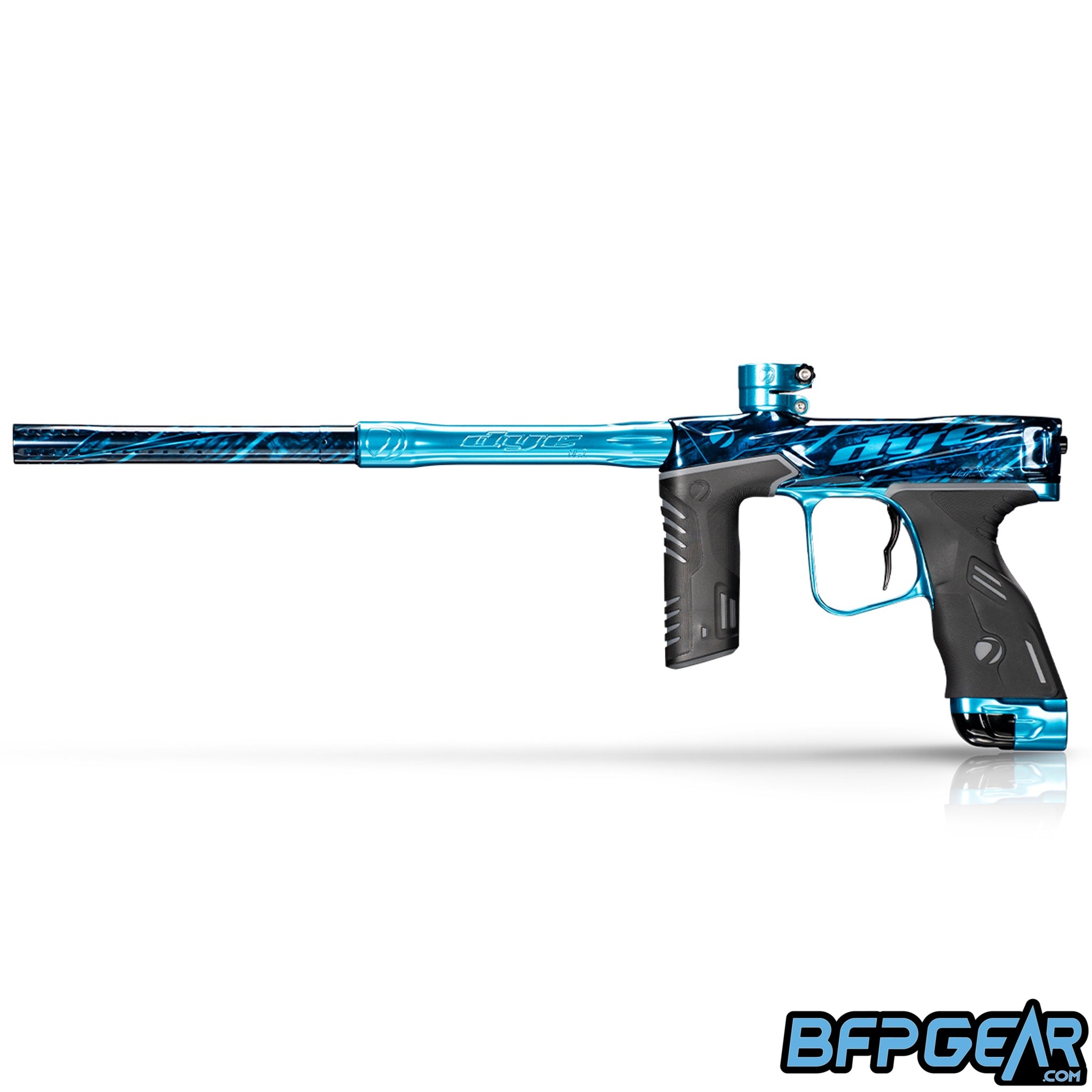

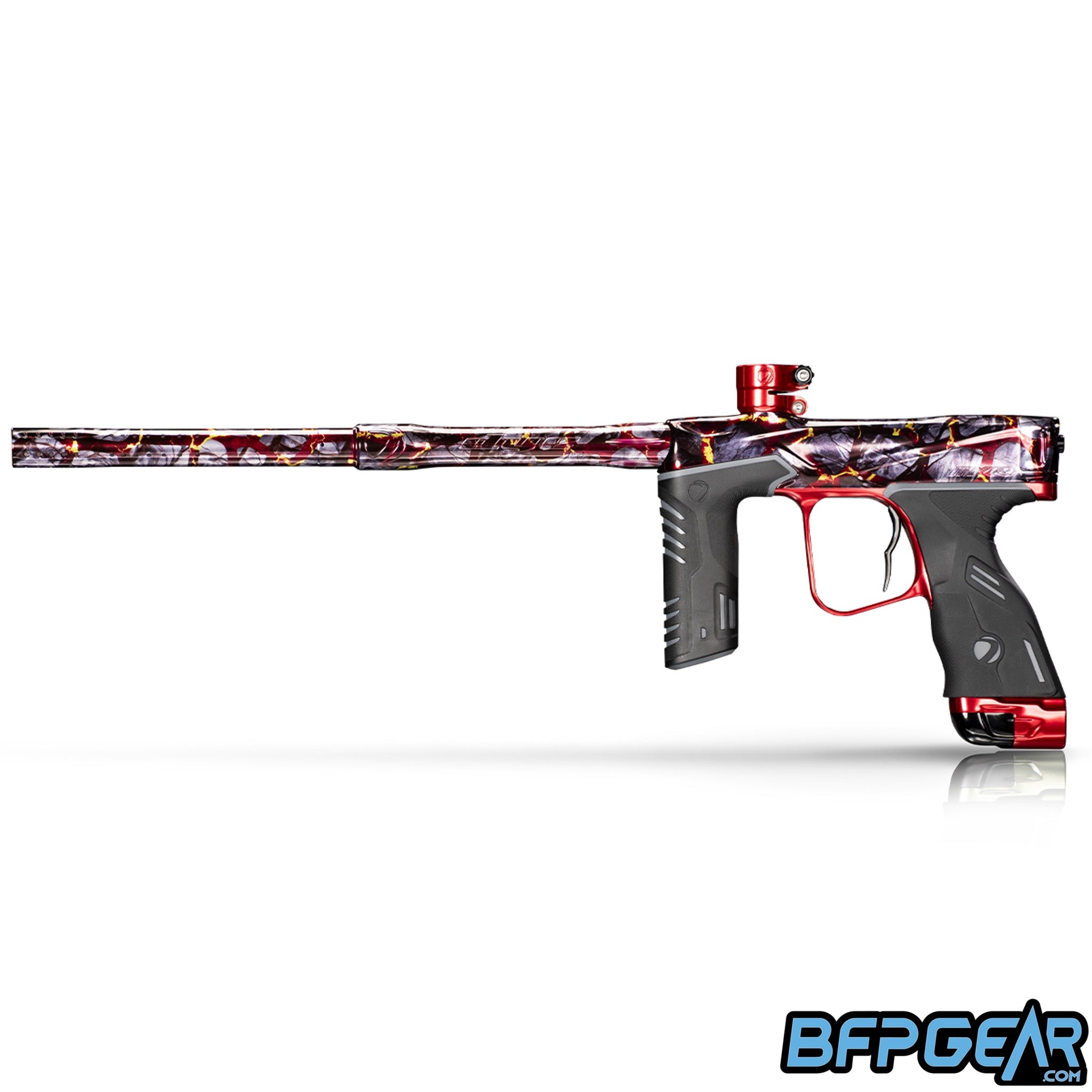

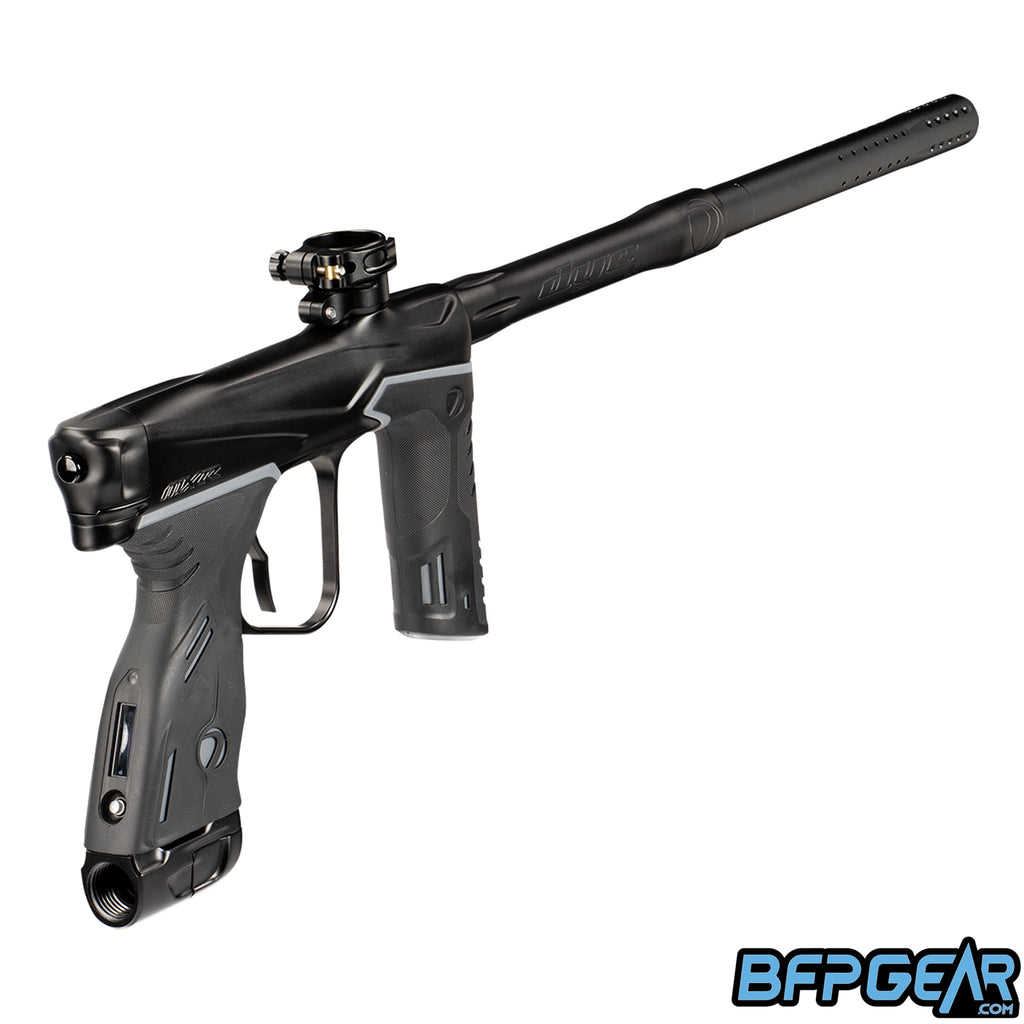

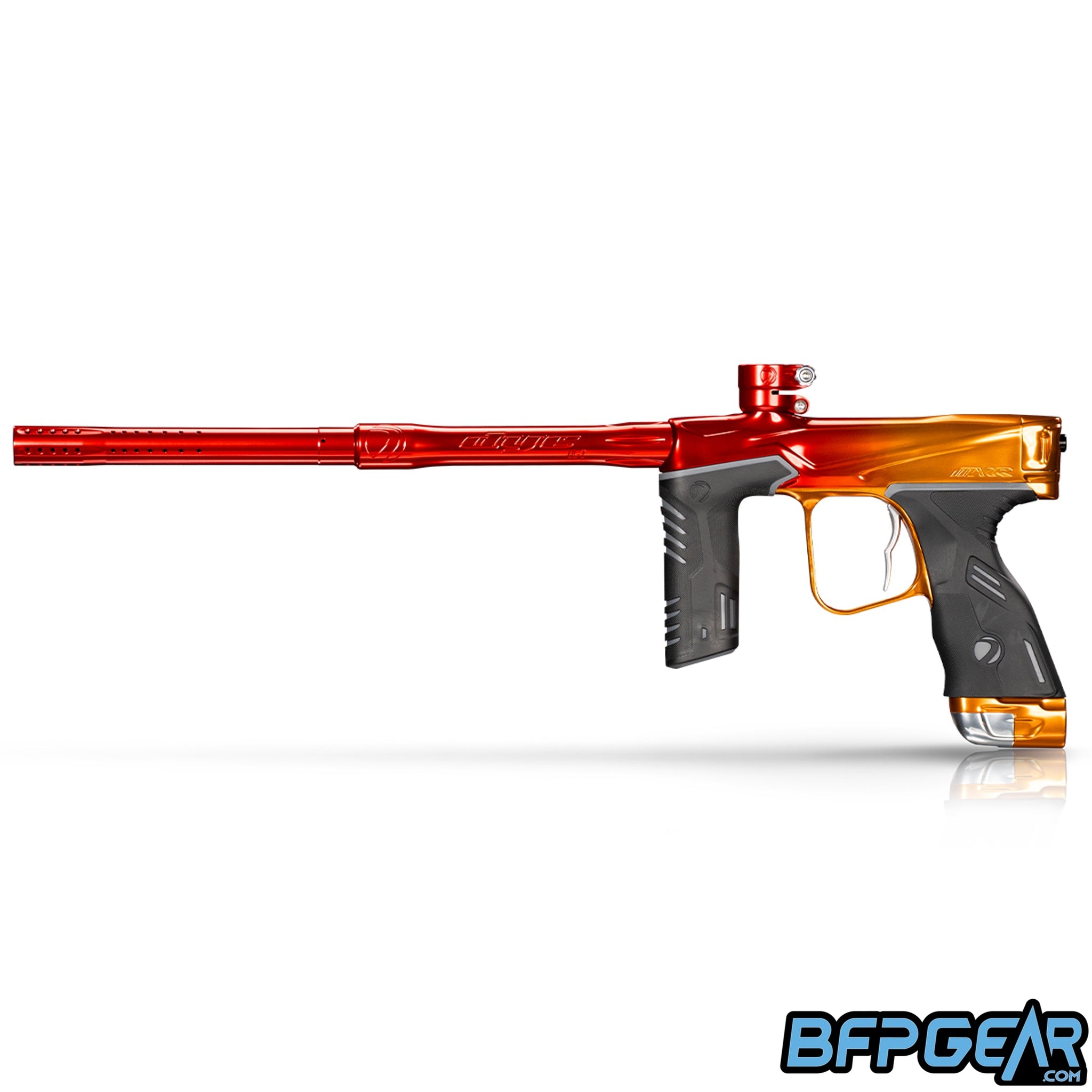

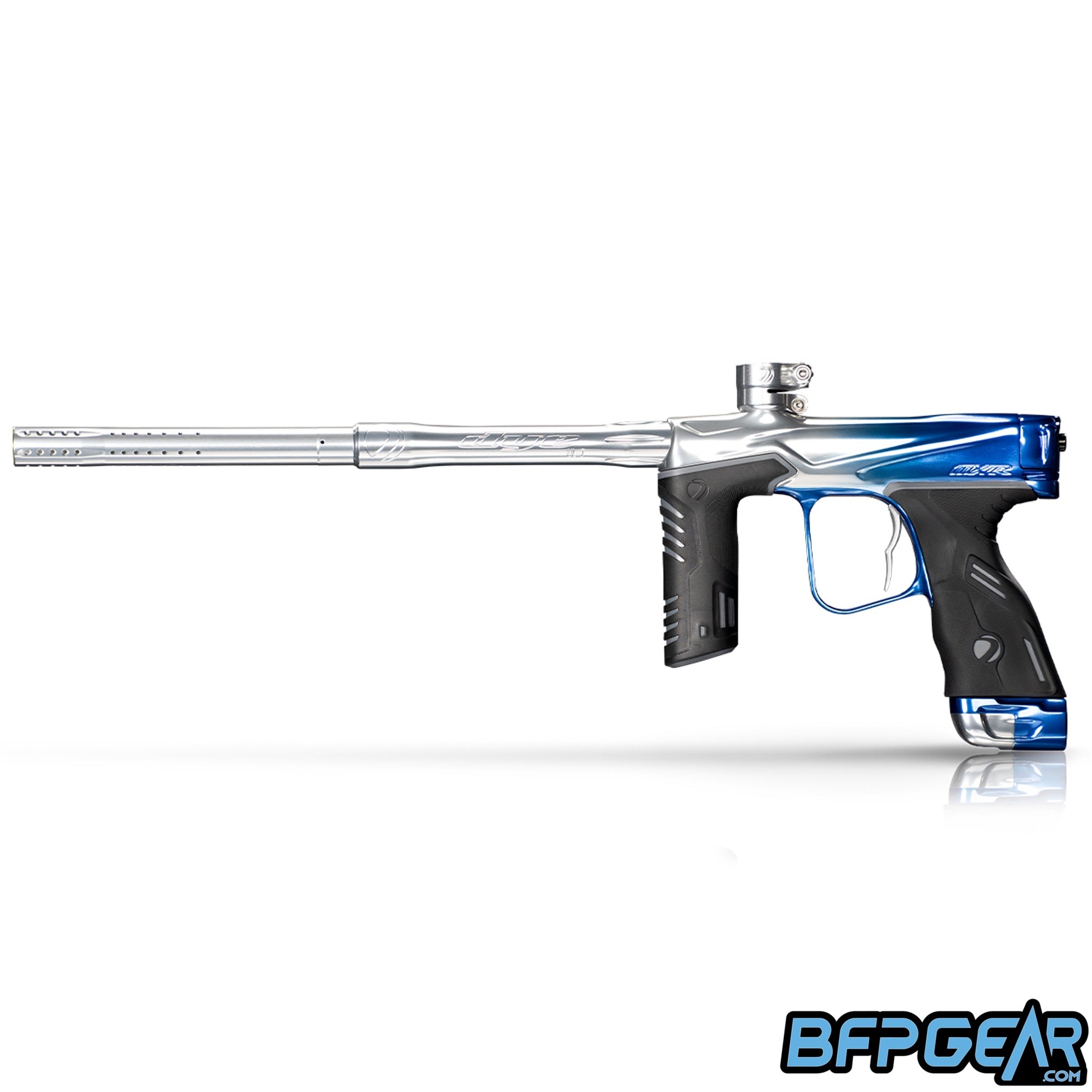

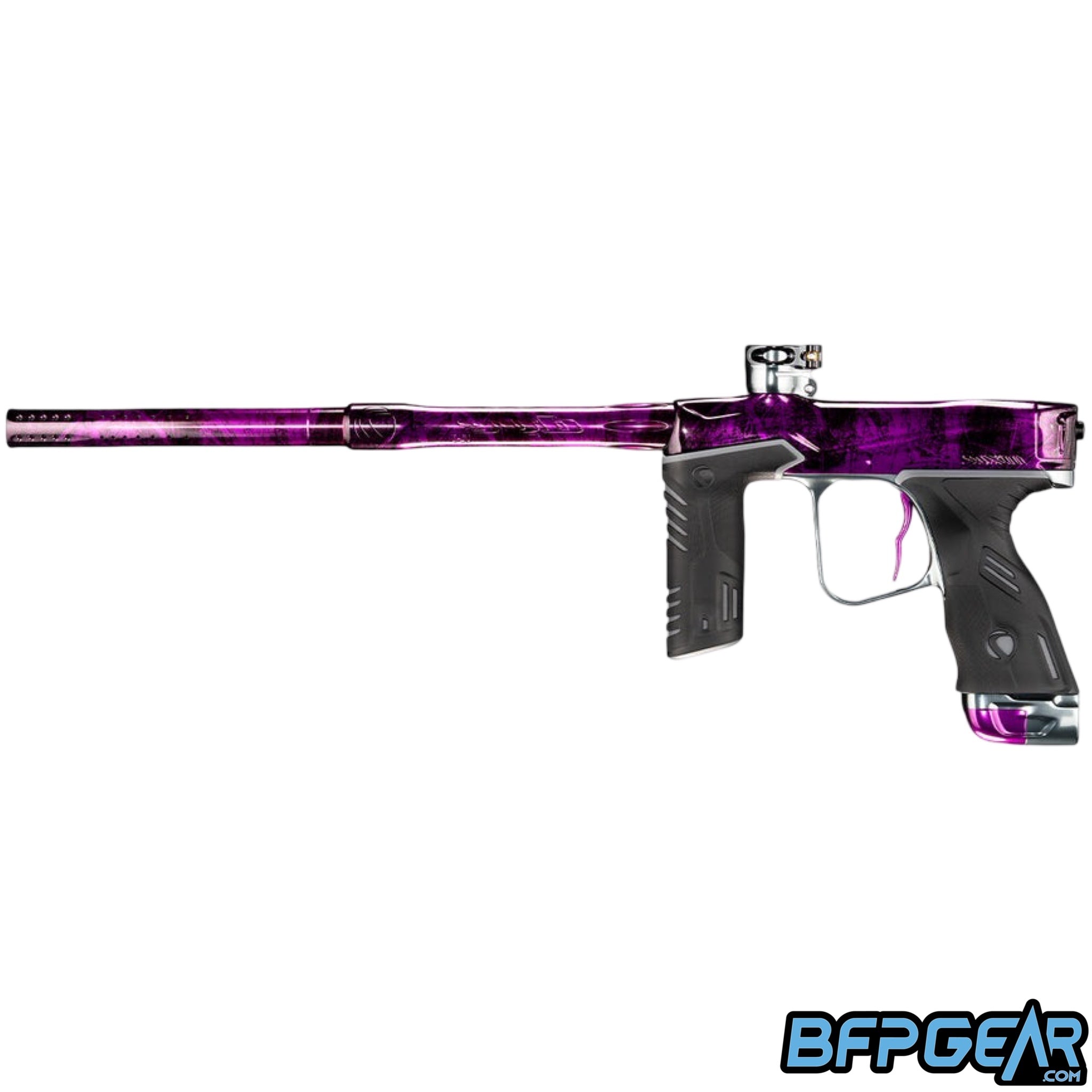

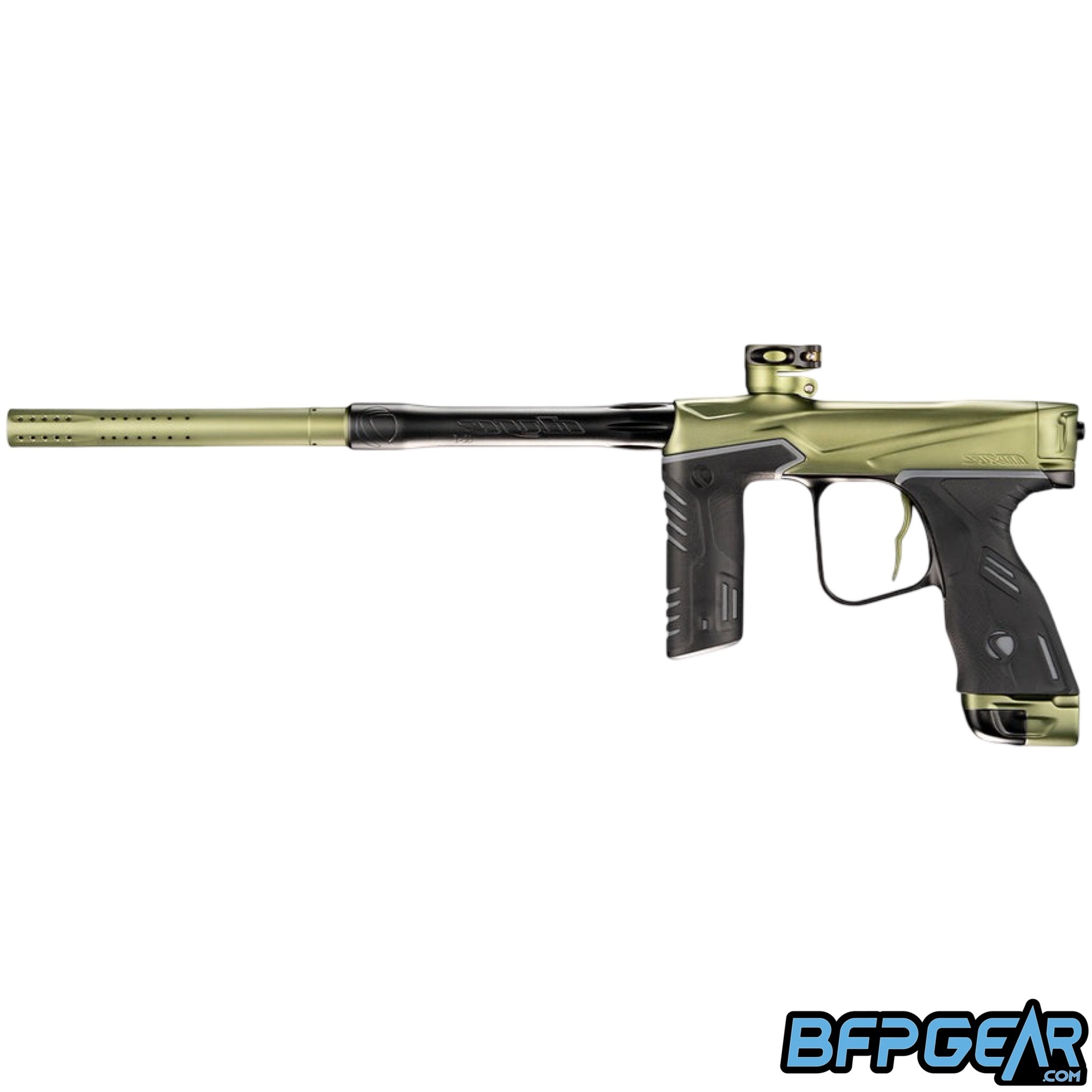

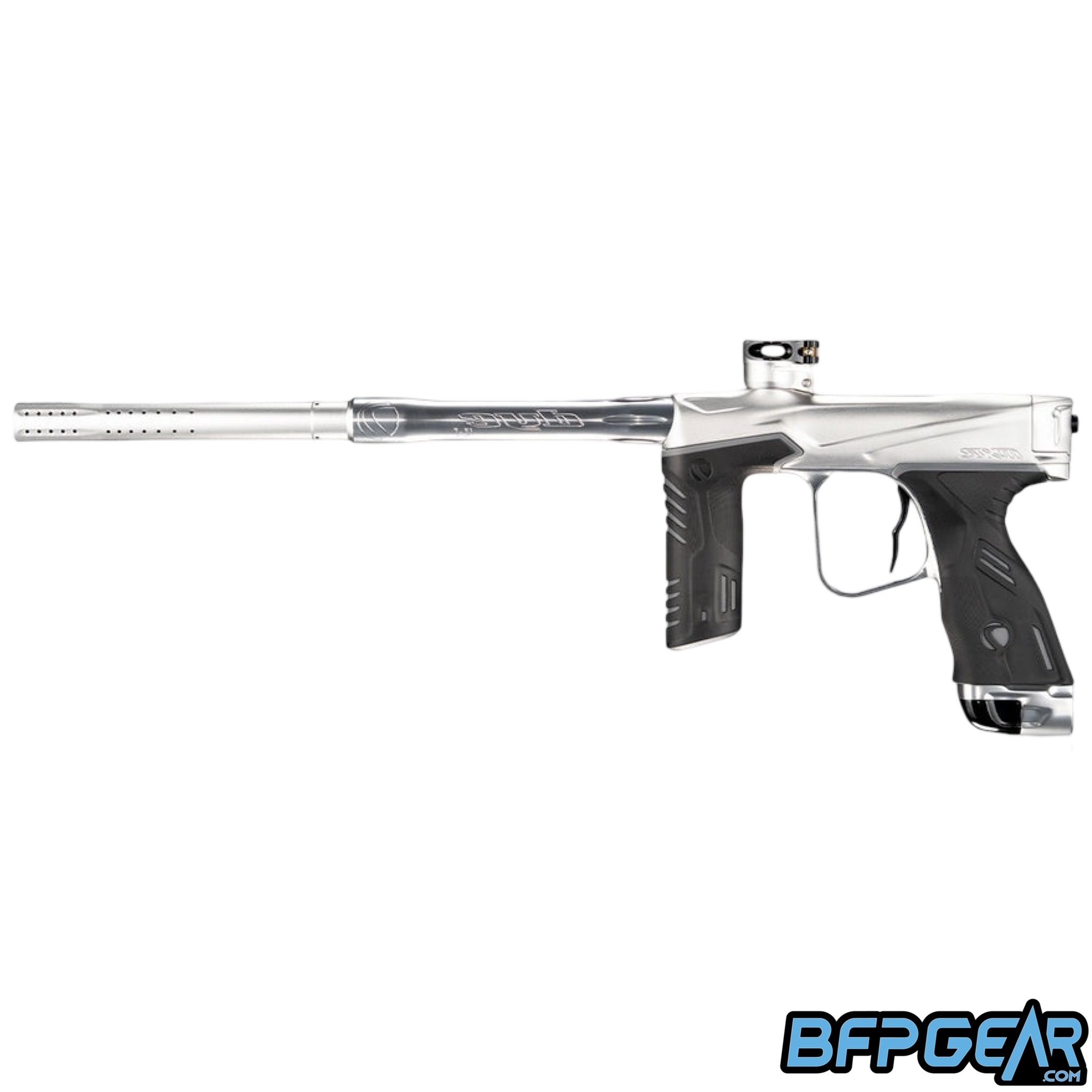

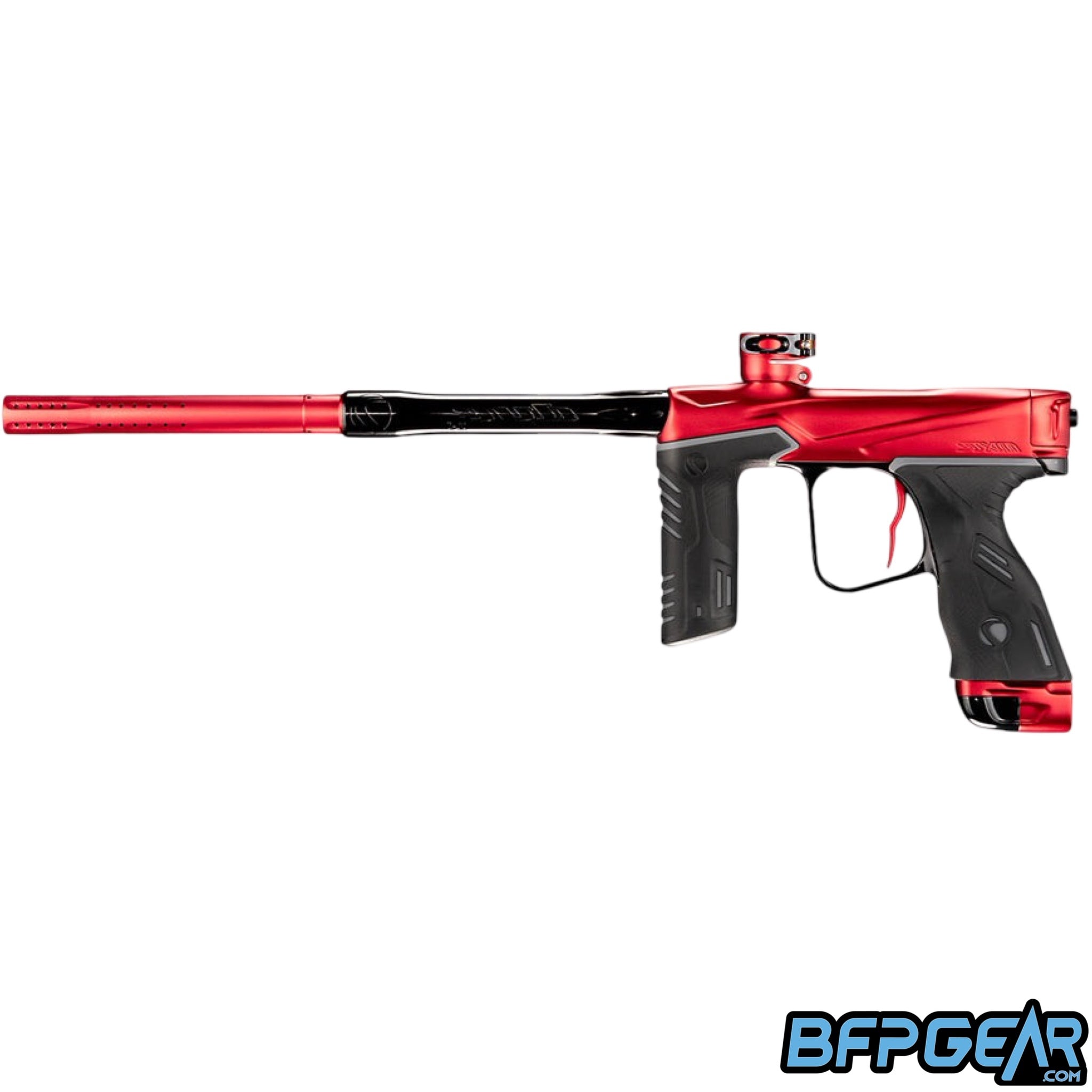

DYE MXR Paintball Marker represents the next evolution of DYE marker technology, combining over 20 years of innovation into a single tournament ready platform. Built by blending the efficiency and reliability of the M3+ with the smooth shot characteristics of the DSR+, the MXR introduces an entirely new performance standard for competitive paintball.
The MXR is designed for serious tournament players who demand consistency, efficiency, and refined shot quality. At the core is the all new ARC X Bolt System, delivering a softer, quieter shot with improved efficiency and reduced maintenance. Paired with the 3v MOSair Operating System, the MXR is engineered to perform reliably across changing field and weather conditions.
Designed with competition in mind, the MXR features tool free operation, enhanced paint handling, and a modular detent system that allows players to fine tune performance based on paint quality. Ergonomics are refined through the UL 45 Frame and quick release Sticky Grips, providing comfort and control during long points and full tournament days.
Key Features
- Next generation DYE MXR marker platform
- ARC X bolt system with Flex Face bolt tip
- 3v MOSair operating system
- Internal pressure sensor
- Quick release bolt and grips for easy maintenance
- SLAP 2 ASA slide lock airport
- Lockdwn 2 clamping feedneck
- Gas thru design with low profile construction
- Powered by two AA batteries
- Mech frame compatible platform coming soon
Paint Handling and Control
The MXR features the new TAAC Detent System, a modular multi directional detent design that allows players to experiment with different o ring setups for improved ball control across varying paint sizes. Combined with the Flex Face Bolt Tip and fifth generation breech sleeve system, the MXR delivers excellent paint handling and anti chop protection.
Trigger and Electronics
The Mag X Reach trigger system includes two trigger profiles and is designed to provide fast response and consistent feel. The joystick driven interface allows simple navigation of settings through the high contrast display powered by the MOSair operating system.
Air System and Efficiency
The MXR operates at a low operating pressure of approximately 120 PSI, contributing to excellent air efficiency and a smooth shot signature. The Hyper 6 IM regulator ensures consistent pressure delivery and easy service access.

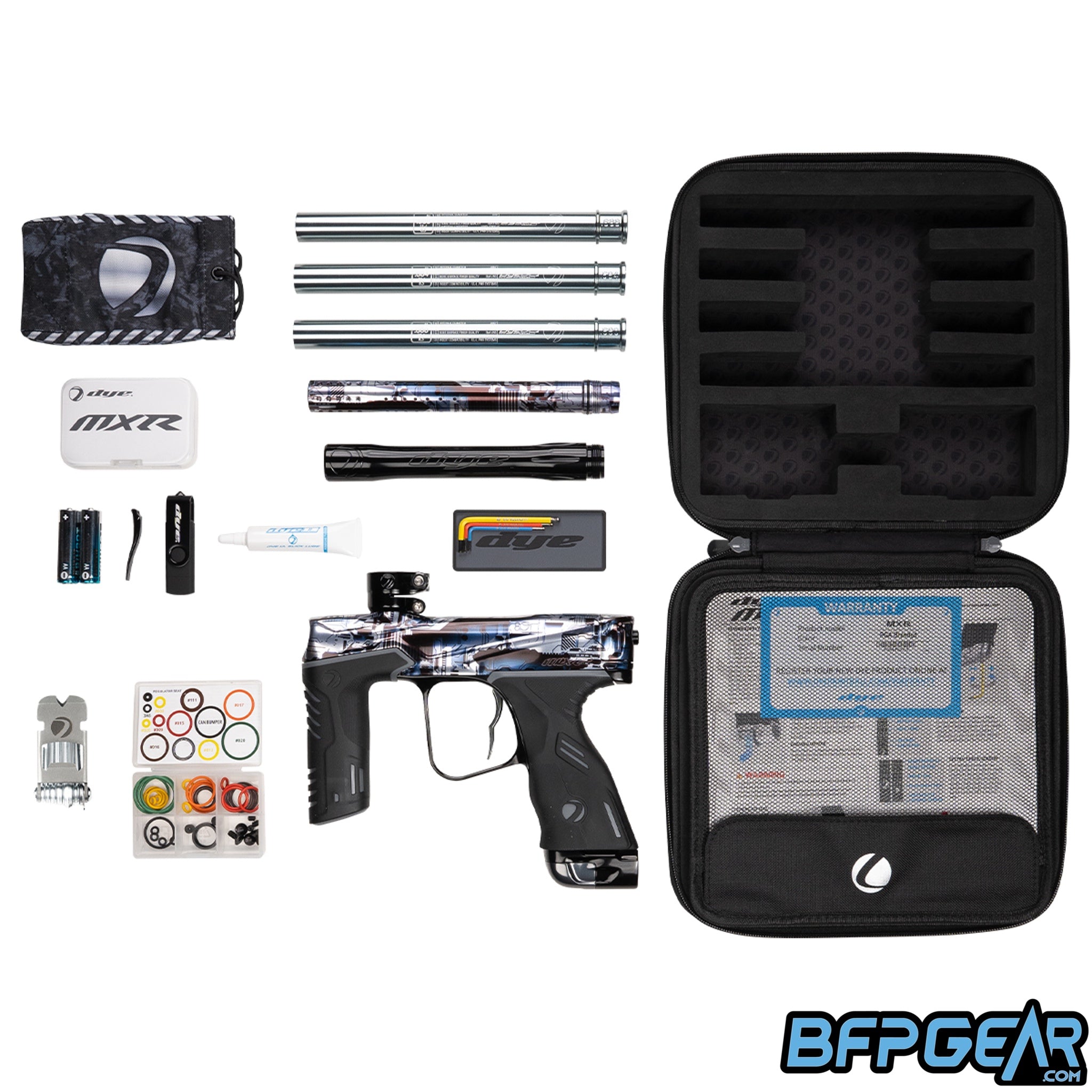

Included with Marker
- DYE Boomstick UL i barrel system with .680 .684 and .688 inserts
- Compression formed protective case with EVA foam
- Quick start guide and tools
Construction and Ergonomics
- All aluminum aerospace grade construction
- No exposed screws or plates
- UL 45 frame with full wrap quick release Sticky Grips
- Dual density micro textured grips
- Low profile tournament focused design
ARC X Bolt System Highlights
- Reduced o ring count for longer service cycles
- Simplified maintenance
- Redesigned valve porting for improved consistency
- Softer and quieter shot signature
- Dwell insensitive operation
- High efficiency with minimized chamber expansion
- Air spring return and solenoid air supply cut off
